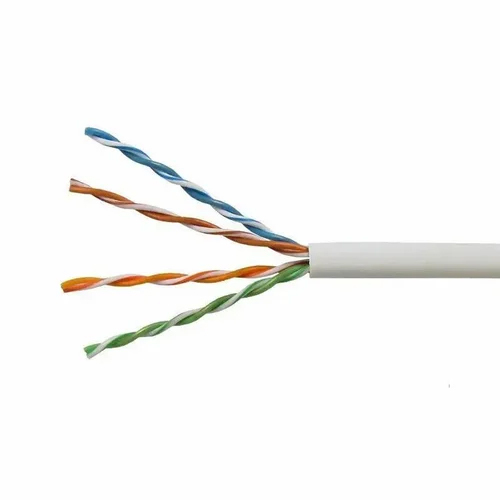

Cat 6 LAN Cable

Name: Cat 6 LAN Cable
Brand: R D INFOTECH
Price: 6900 INR
Availability: InStock

Price 6900 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

Cat 6 LAN Cable Specification

Device Type
Twisted Pair LAN Cable

Weight
Depends on length; approx. 8 kg (305m)

Remote Control
Yes

Interface Type
RJ45 Connector Compatible

Features
High Speed, Low Attenuation, Enhanced Crosstalk Performance, RoHS Compliant

Dimension (L*W*H)
Standard: 305m box (other options available)

Usage & Applications
Networking, Data Transfer, Internet, Office, Home, Industrial Applications

Frequency
Up to 250 MHz

Operating Temperature
-20C to +60C

Network Device
No

Number Of Ports/Pins
8 Pins (per RJ45 Connector)

Connectivity Type
Wired

Cable Length
305 Meters (Standard Roll)

Pair Identification
Standard color code

Shielding
Unshielded (UTP)

Flame Retardant
Yes

Jacket Material
PVC

Structure
4 Pairs Twisted, Unshielded (UTP), Solid

Storage Temperature
-40°C to +70°C

Conductor Material
95% Pure Copper (Bare Copper)

Insulation Material
Polyethylene (HDPE)

Relative Humidity
Up to 95% Non-Condensing

Impedance
100 ± 15 Ohms

Maximum Data Rate
Up to 1 Gbps (1000 Mbps)

Cable Category
Category 6 (Cat 6)

Test Voltage
2.5 kV

Compliance
TIA/EIA 568-C.2, ISO/IEC 11801

Jacket Color
Grey (other colors available)

Cat 6 LAN Cable Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7-10 Days

Main Domestic Market
All India

About Cat 6 LAN Cable

Cat 6 LAN Cable is a type of Ethernet cable used in networking and telecommunications to connect devices in a local area network (LAN). It provides adequate performance for most current networking needs and can handle future requirements for higher speeds. This offers a good balance of performance and cost, making it a popular choice for many installations. They are designed to handle higher data rates and provide improved performance compared to earlier categories like Cat 5e. Cat 6 LAN Cable supports higher data rates and improved performance compared to earlier categories.

Premium Construction for Reliable Networking

Built with 95% pure copper conductors and high-density polyethylene insulation, our Cat 6 LAN cable delivers exceptional signal transmission and durability. Its four solid twisted pairs minimize crosstalk and interference, ensuring maximum data integrity across lengthy runs. Designed for extensive office, industrial, and residential networks, this cable's unshielded, flame-retardant construction guarantees both safety and efficiency.

Versatile Applications Across Environments

From fast-paced workplaces to smart homes, our Cat 6 LAN cable is engineered for a wide range of networking needs. Supporting up to 1 Gbps and 250 MHz frequency, it excels in data transfer, internet connectivity, and high-speed communications. The grey PVC jacket is both sturdy and visually neutral, with alternative color options available for specialized applications or organizational needs.

Tested for Safety and Compliance

Adhering strictly to industry standards such as TIA/EIA 568-C.2 and ISO/IEC 11801, this LAN cable is RoHS compliant and flame retardant. It undergoes rigorous testing at 2.5 kV for reliability and is rated for operation from -20C to +60C, ensuring optimum performance and longevity in diverse installation environments. Each roll is precision-packed for dependability and ease of setup.

FAQ's of Cat 6 LAN Cable:

Q: How do I install the Cat 6 LAN cable in my home or office network?

A: Installation involves routing the Cat 6 cable between your devices (such as routers, switches, and computers) and terminating each end with RJ45 connectors, which the cable is fully compatible with. Always ensure the cable is run away from sources of electrical interference for optimal performance.

Q: What are the benefits of using a 95% pure copper conductor in this LAN cable?

A: A 95% pure copper conductor ensures superior conductivity, reducing signal loss and attenuation. This maximizes data transmission speeds, provides greater reliability over longer distances, and improves overall network performance compared to cables with lower copper content or mixed metals.

Q: When should I choose Cat 6 over other Ethernet cable categories?

A: Cat 6 is ideal when you require data transmission speeds up to 1 Gbps and higher protection against crosstalk for stable, high-performance networking. It is recommended for modern offices, industrial environments, and advanced home networks demanding seamless internet and data transfer.

Q: Where can the Cat 6 LAN cable be used effectively?

A: This cable is suitable for various environments, including homes, offices, factories, schools, and other settings requiring reliable wired networking. Its robust construction and compliance with international standards make it well-suited for demanding conditions and professional installations.

Q: What is the process for customizing cable length or color?

A: While the standard roll is 305 meters in grey, other lengths and colors can be supplied per request. Contact your distributor or supplier to discuss specific requirements, and they will guide you through the customization and ordering process.

Q: How does the unshielded twisted pair (UTP) design impact performance?

A: The UTP structure in this Cat 6 cable provides enhanced crosstalk performance due to the tight twisting of pairs, delivering excellent signal integrity. This helps maintain high speed and low attenuation without the additional bulk and complexity of shielded cables.

Q: What are the safety and environmental advantages of this Cat 6 cable?

A: This LAN cable is flame retardant, RoHS compliant, and tested for operational safety at up to 2.5 kV. It maintains performance across a broad temperature range and high humidity, making it dependable for long-term installation in various climates while minimizing hazardous substances.
